Positioning hinges
H03
Suitable for automobile folding table boards, storage boxes, motorcycle back covers, engineering seat armrests, etc., providing precise positioning and damping cushioning.
▪ Type: Positioning hinge
▪ Range of Motion: 270 degrees
Suitable for automobile folding table boards, storage boxes, motorcycle back covers, engineering seat armrests, etc., providing precise positioning and damping cushioning.
▪ Type: Positioning hinge
▪ Range of Motion: 270 degrees
Product Details
Key Features & Benefits
——
▪ 80 patents covering all hinges
▪ Compact design, suitable for diverse applications
▪ Available in multiple torque options
▪ Stable dynamic and static performance
▪ Equal resistance in both directions
▪ Lifetime: 30000 cycles (23°C ambient temperature)
▪ Operating temperature of the product: -40°C~90°C

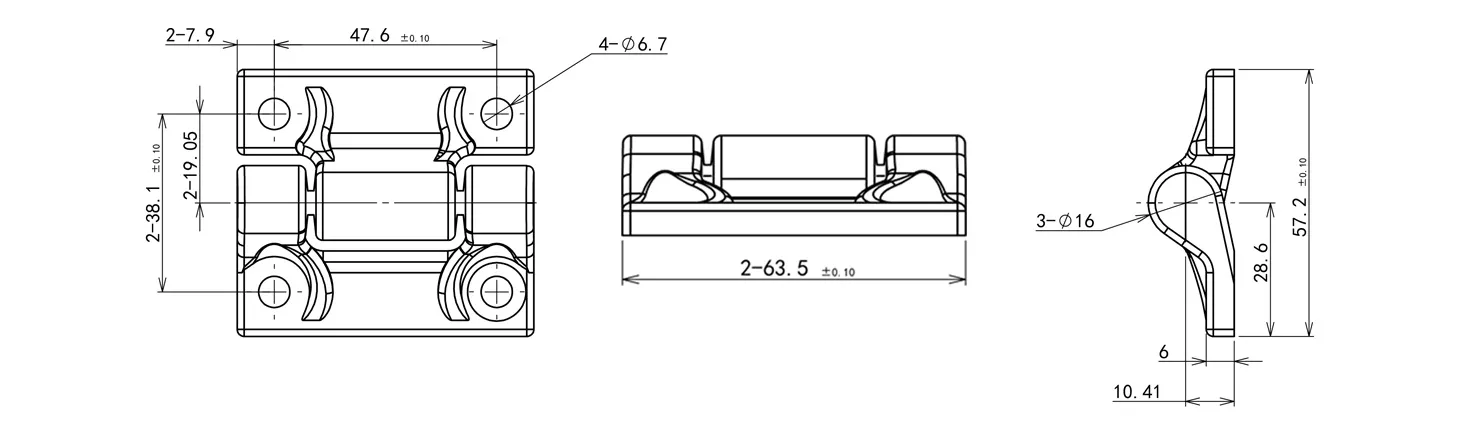

Drawing
——

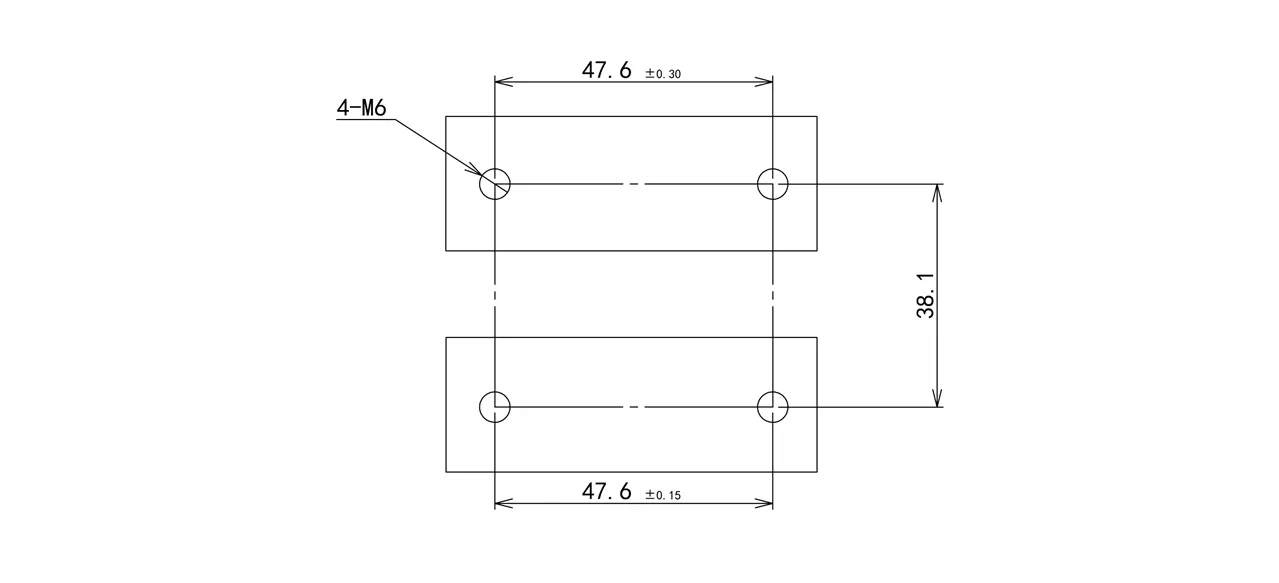

Assembly Size
——
Technical Specifications
——
|
Product model |
Torque Specifaton (N.m) |
|
H03030 |
3.0±0.45N·m |
|
H03040 |
4.0±0.6N·m |
Key Features & Benefits
——
▪ 80 patents covering all hinges
▪ Compact design, suitable for diverse applications
▪ Available in multiple torque options
▪ Stable dynamic and static performance
▪ Equal resistance in both directions
▪ Lifetime: 30000 cycles (23°C ambient temperature)
▪ Operating temperature of the product: -40°C~90°C
Drawing
——
Assembly Size
——
Technical Specifications
——
|
Product model |
Torque Specifaton (N.m) |
|
H03030 |
3.0±0.45N·m |
|
H03040 |
4.0±0.6N·m |
