Return System
N006D
The return mechanism is customized for the glove box, with buffer and self-locking functions to ensure smooth opening and closing.
▪ Mechanical unlocking
The return mechanism is customized for the glove box, with buffer and self-locking functions to ensure smooth opening and closing.
▪ Mechanical unlocking
Product Details
Key Features & Benefits
——
▪ 80 patents covering all return systems
▪ 100% tested
▪ High stability under stress
▪ Compact design
▪ R&D testing and vertification
▪ Satisfying customer needs
▪ Lifetime: 10000 cycles (23°C ambient temperature)
▪ Operating temperature of the product: -40°C~80°C

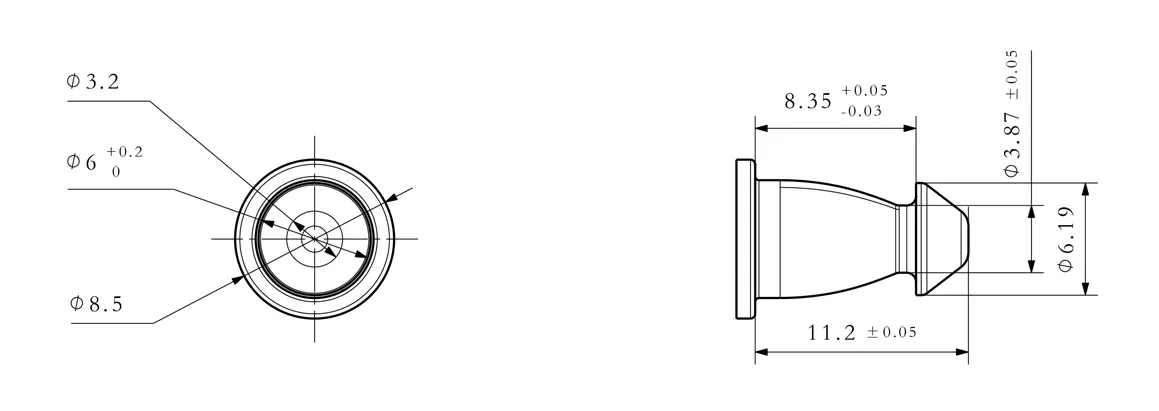

Drawing
——

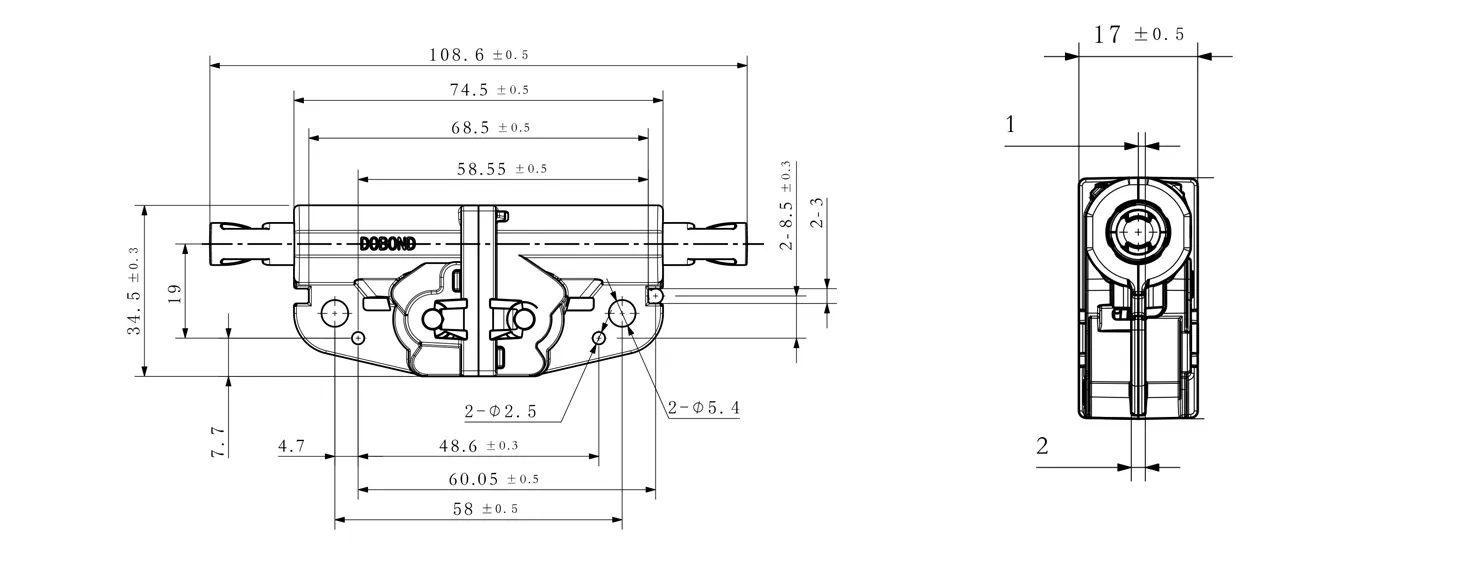

Assembly Size
——
Technical Specifications
——
|
Unilateral compression 6.3mm |
8.5±1N |
|
Unilateral compression 16.8mm |
18±1N |
Key Features & Benefits
——
▪ 80 patents covering all return systems
▪ 100% tested
▪ High stability under stress
▪ Compact design
▪ R&D testing and vertification
▪ Satisfying customer needs
▪ Lifetime: 10000 cycles (23°C ambient temperature)
▪ Operating temperature of the product: -40°C~80°C
Drawing
——
Assembly Size
——
Technical Specifications
——
|
Unilateral compression 6.3mm |
8.5±1N |
|
Unilateral compression 16.8mm |
18±1N |
