Return System
N108A
The return mechanism is customized for the glove box, with buffer and self-locking functions to ensure smooth opening and closing.
▪ Electronic unlocking
The return mechanism is customized for the glove box, with buffer and self-locking functions to ensure smooth opening and closing.
▪ Electronic unlocking
Product Details
Key Features & Benefits
——
▪ Rated voltage: DC 12V;
▪ Operating voltage: DC 9–16V;
▪ No-load current: ≤1.5A
▪ Operating stroke: 10±1mm;
▪ Operating temperature: -40°C to 85°C;
▪ Output force: 20–35N;
▪ Protection rating: IP50
▪ Service life: 30000 cycles
▪ Opening duration:0.2s

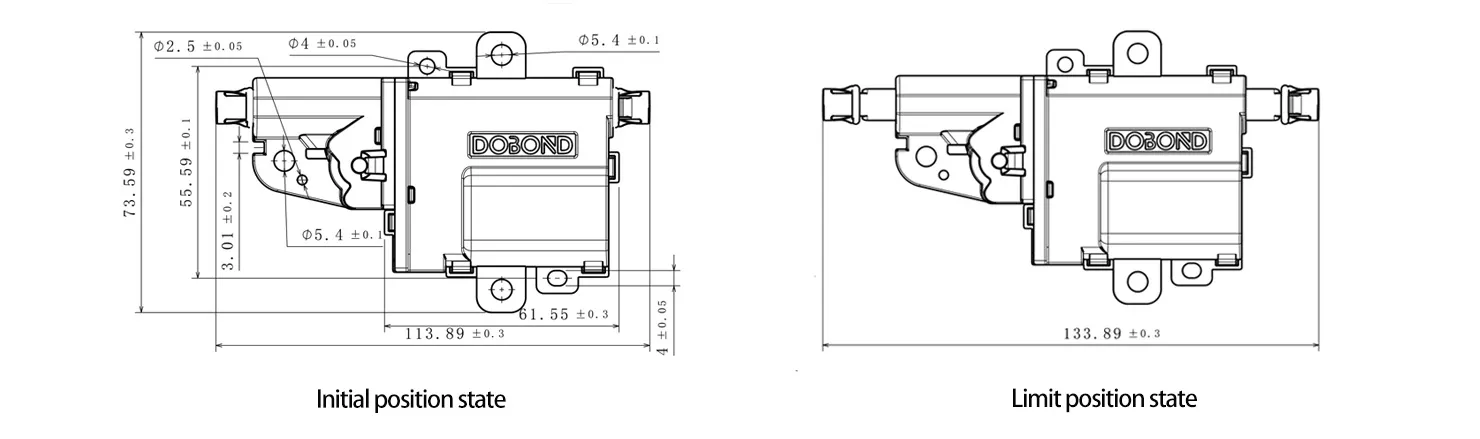

Drawing
——
Technical Specifications
——
|
Stroke(mm) |
9-11mm |
|
Operation force(N) |
25N |
Key Features & Benefits
——
▪ Rated voltage: DC 12V;
▪ Operating voltage: DC 9–16V;
▪ No-load current: ≤1.5A
▪ Operating stroke: 10±1mm;
▪ Operating temperature: -40°C to 85°C;
▪ Output force: 20–35N;
▪ Protection rating: IP50
▪ Service life: 30000 cycles
▪ Opening duration:0.2s
Drawing
——
Technical Specifications
——
|
Stroke(mm) |
9-11mm |
|
Operation force(N) |
25N |
