Gear damper can be used in automotive interior parts such as center armrest locks, cup holders, adjustable headrests/armrests, sun visors, storage boxes, etc. It can also be used in home appliances, office supplies covers, etc.

　Product Details

Key Features & Benefits

——

▪ 80 patents covering all dampers

▪ 100% tested

▪ High stability under stress

▪ Compact design

▪ R&D testing and vertification

▪ Satisfying customer needs

▪ Lifetime: 10000 cycles (23°C ambient temperature)

▪ Conditions: 1 cycle=1 revolutions forward-1 revolutions backward

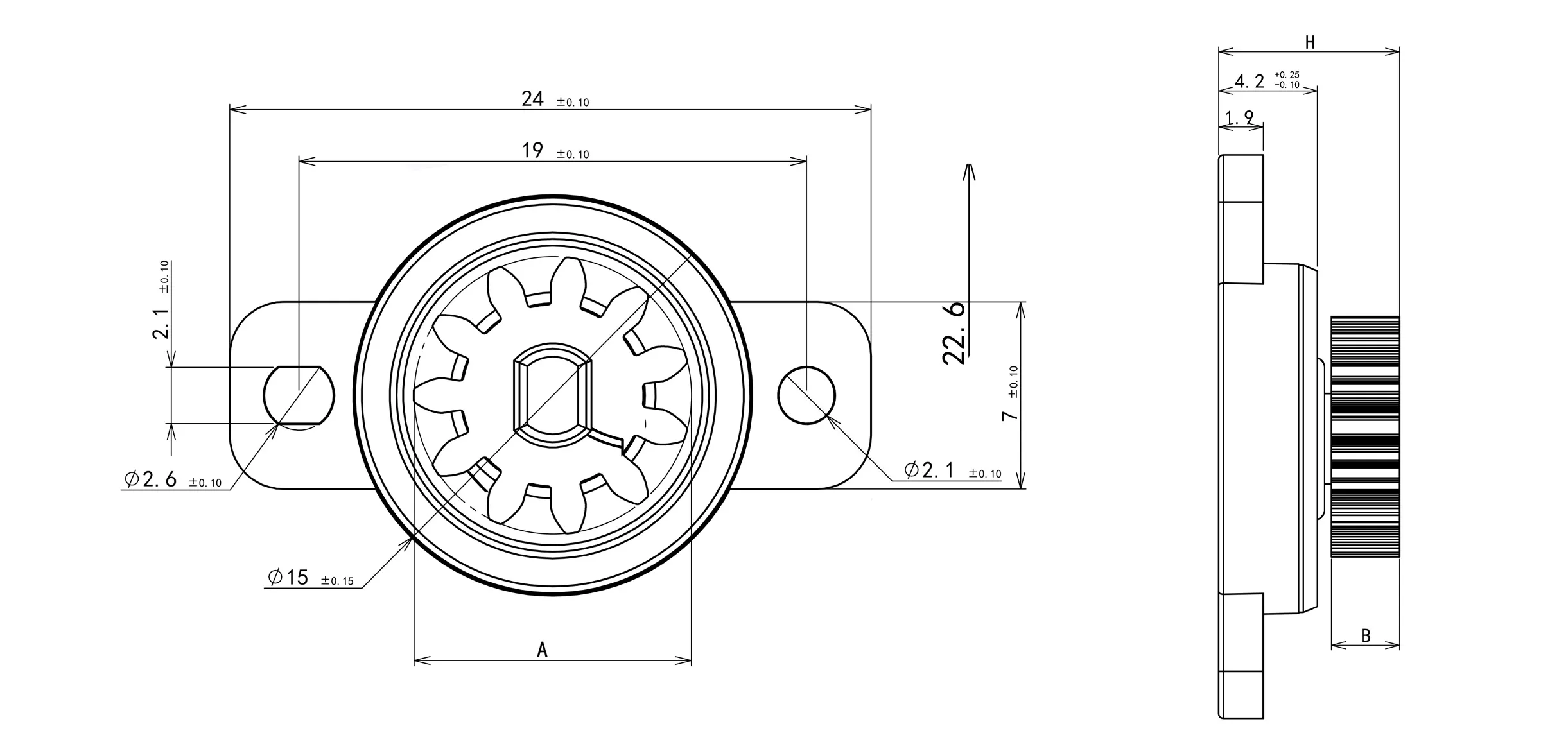

Drawing

——

CB series

Technical Specifications

——

Torque Specification (N.cm)	Gear Color
220=2.2±0.35Ncm	Orange
150=1.5±0.25Ncm	Pink
120=1.2±0.20Ncm	Blue
110=1.1±0.20Ncm	Grey
095=0.95±0.18Ncm	Red
080=0.80±0.15Ncm	White
060=0.60±0.17Ncm	Black
045=0.45±0.12Ncm	Brown
030=0.30±0.10Ncm	Green
025=0.25±0.08Ncm	Yellow

CB series

Key Features & Benefits

——

▪ 80 patents covering all dampers

▪ 100% tested

▪ High stability under stress

▪ Compact design

▪ R&D testing and vertification

▪ Satisfying customer needs

▪ Lifetime: 10000 cycles (23°C ambient temperature)

▪ Conditions: 1 cycle=1 revolutions forward-1 revolutions backward

Drawing

——

CB series

Technical Specifications

——

Torque Specification (N.cm)	Gear Color
220=2.2±0.35Ncm	Orange
150=1.5±0.25Ncm	Pink
120=1.2±0.20Ncm	Blue
110=1.1±0.20Ncm	Grey
095=0.95±0.18Ncm	Red
080=0.80±0.15Ncm	White
060=0.60±0.17Ncm	Black
045=0.45±0.12Ncm	Brown
030=0.30±0.10Ncm	Green
025=0.25±0.08Ncm	Yellow
